AH10N

Aluminium Tactile Studs with Plug

P5 Slip Rating

AS/NZS Compliant

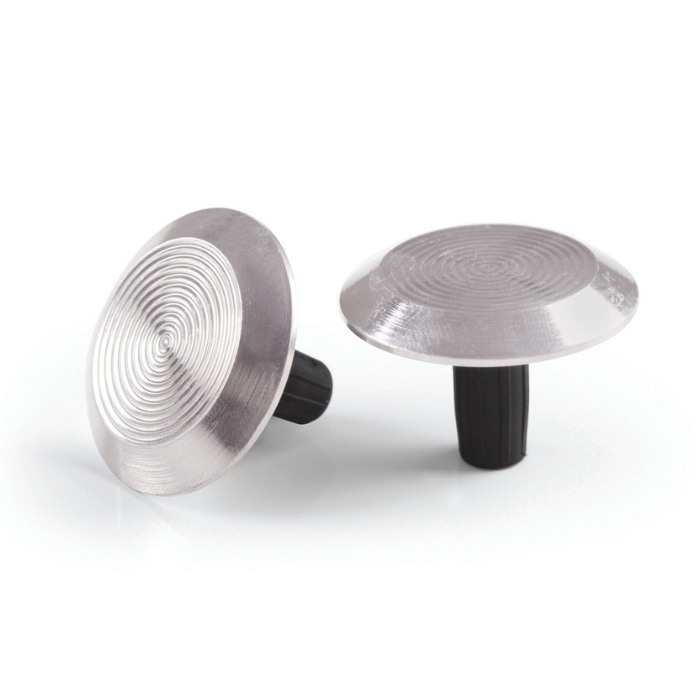

Tredfx Aluminium Tactile Studs are lightweight, corrosion-resistant, and feature a 10-ring grooved top, rear nylon stud, and sloped sides for secure installation. Ideal for high-traffic areas, they balance safety and aesthetics.

Environment: Exterior, Interior

Finished Surface: Asphalt, Carpet, Concrete, Tile, Timber, Vinyl

Material: Aluminium

Application: Knock in

Size: 25mm top diameter & 35mm bottom diameter, 5mm height.

$4.06 Excluding GST

Colors:

No color attribute available.

Colour Profiles

Clear

Per stud

Request a sample See on masterspec

Specifications

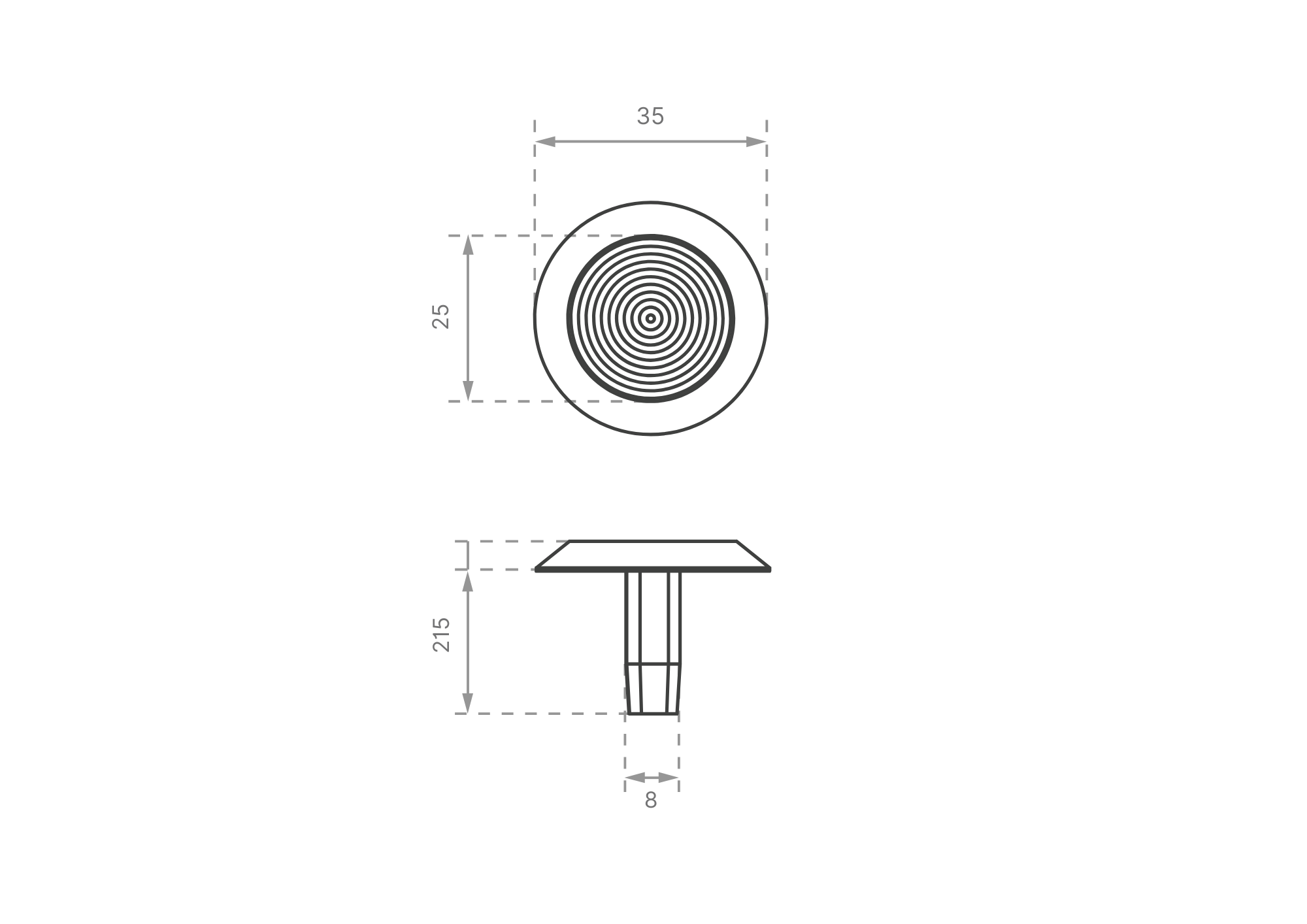

25mm top diameter & 35mm bottom diameter, 5mm height. Pin: 8mm diameter, 20mm length. Surcharge for custom annodized colours of $480 per order contact us for detailed pricing. All products adhere to or exceed the requirements of AS/NZS 1428.4.1:2009, NZTA RTS14.2009, NZS 4121:2001, AS/NZS 3661.1.1993, AS/NZS 4586:2004

Warranty

Haptix offers a ten-year comprehensive warranty on our tactiles, covering defects in materials and workmanship under normal use and conditions. Specific warranty terms can be provided upon request.
